 .h5 -> .pb -> .tflite 변환 오류(python)


  • .h5-> .pb 오류

colab으로 movilenetv2 모델로 돌려서 h5모델을 얻어냈다!!



but..!

bugloss-chestnut.tistory.com/entry/Android-h5-pb-tflite%EB%A1%9C-%EB%B3%80%ED%99%98-%EC%95%88%EB%93%9C%EB%A1%9C%EC%9D%B4%EB%93%9C%EC%97%90-%EC%A0%81%EC%9A%A9



[Tensorflow & Android] .h5 -> .pb -> .tflite로 변환 & 안드로이드에 적용(python & java)

.h5 -> .pb -> .tflite로 변환 & 안드로이드에 적용(python & java) 1. .h5 -> .pb -> .tflite로 변환 .h5 파일 -> .pb 파일로 변환하기 (코드) from tensorflow import keras model = keras.models.load_model(..

bugloss-chestnut.tistory.com

이 방법대로 했더니... 갑자기 오류가...

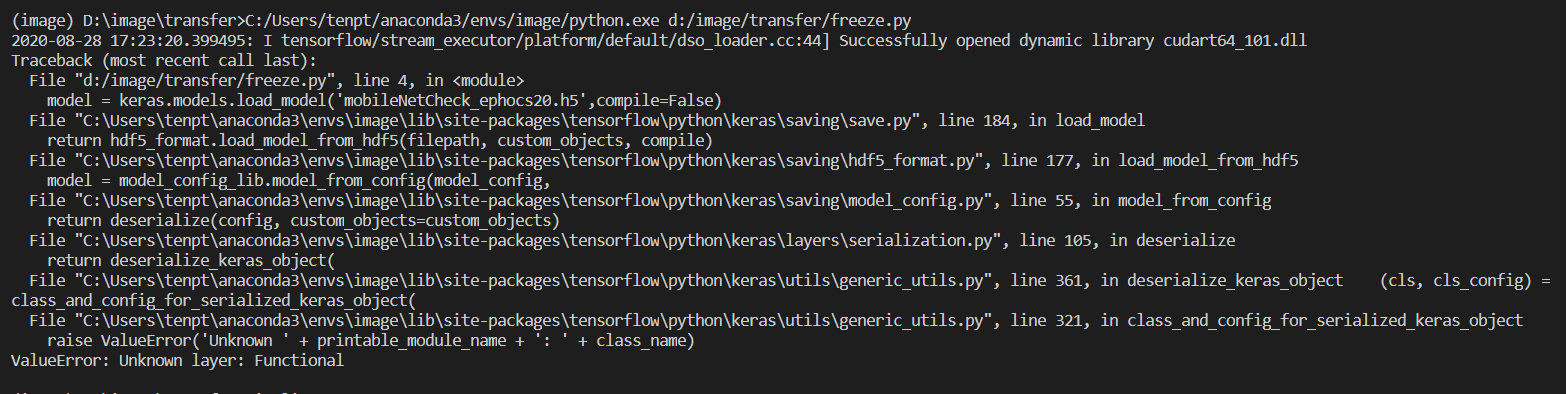

맨 마지막에 ValueError: Unknown layer: Functional 이라는 오류가 생겨서 먹통이 되었다.



그래서 폭풍 검색중에 발견한 블로그..!

kaen2891.tistory.com/tag/Keras%20Unknown%20layer%20%ED%95%B4%EA%B2%B0



Kaen의 일상생활

Only in the agony of parting do we look into the depths of love -- 낭만은 짧고 지저분한 질척거림만 남은 첫눈처럼 유독 추운 겨울이었고 누군가 떠날 것 같았다.

kaen2891.tistory.com

custom_object를 선언해서 해줬음에도 불구하고 똑같은 오류가 발생...



또 열심히 구글링 중에 발견한것..



stackoverflow.com/questions/63068639/valueerror-unknown-layer-functional



ValueError: Unknown layer: Functional

I made a CNN in colab and saved the models at every epoch. I exported the h5 file and now am trying to run the model on some test images. Here's the main error: ValueError: Unknown layer: Functional

stackoverflow.com

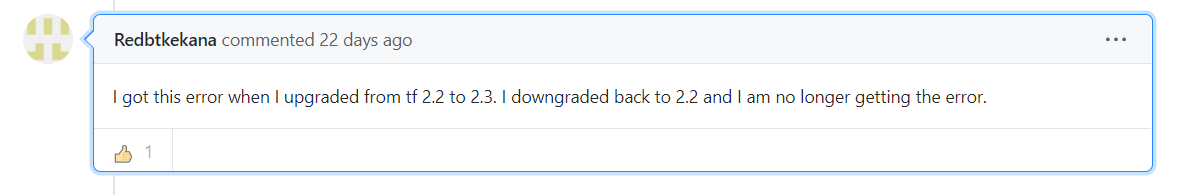

tensorflow 2.3.0 version이면 2.2.0 version으로 downgrade 해주란다~



근데 tensroflow downgrade하니 또 안될때가 있다...(밑에거랑 오류가 같이 떠서 해결방법이 같음.)



또 열심히 구글링



stackoverflow.com/questions/61200676/tensorflow2-1-invalidargumenterror-assertion-failed-0-opassert-name-eage



tensorflow2.1 InvalidArgumentError: assertion failed: [0] [Op:Assert] name: EagerVariableNameReuse

I trained my custom model and used tensorflow 2.1. When I run the code I'm getting the following error: InvalidArgumentError: assertion failed: [0] [Op:Assert] name: EagerVariableNameReuse He...

stackoverflow.com

밑에 보면 tensroflow-gpu를 downgrade!! 얼른 시도 해봣다



downgrade하고 했더니 성공 !! 이게 뭔 오류인가 도대체... ㅠㅠ



ps. downgrade하고도 안될시에 다시 2.3.0으로 upgrade 해주면 작동 잘 될듯(tensorflow 2.3.0 -> 2.2.0 -> 2.3.0 이렇게)



- pip install tensorflow==2.2.0

- pip install tensorflow-gpu==2.2.0


  • .pb -> .tflite 오류

이번엔 .pb -> .tflite 변환할때 오류가 난다~..

bugloss-chestnut.tistory.com/entry/Android-h5-pb-tflite%EB%A1%9C-%EB%B3%80%ED%99%98-%EC%95%88%EB%93%9C%EB%A1%9C%EC%9D%B4%EB%93%9C%EC%97%90-%EC%A0%81%EC%9A%A9



[Tensorflow & Android] .h5 -> .pb -> .tflite로 변환 & 안드로이드에 적용(python & java)

.h5 -> .pb -> .tflite로 변환 & 안드로이드에 적용(python & java) 1. .h5 -> .pb -> .tflite로 변환 .h5 파일 -> .pb 파일로 변환하기 (코드) from tensorflow import keras model = keras.models.load_model(..

bugloss-chestnut.tistory.com

코드에 문제가 없는거 같은데 왜이런지 ~...



이번엔 InvalidArgumentError: assertion failed: [0] [Op:Assert] name: EagerVariableNameReuse 오류



이것도 폭풍 검색중~~ 발견

github.com/tensorflow/tensorflow/issues/38518#issuecomment-669878400



InvalidArgumentError: assertion failed: [0] [Op:Assert] name: EagerVariableNameReuse · Issue #38518 · tensorflow/tensorflow

when i use tensorflow2.1 .I trained my model custom,yesterday,the code can run correctly. But torday is error, I debug my code , I found this code is error , self.train_accuracy = tf.keras.metrics....

github.com



이것도 아까와 같이 downgrade해보란다ㅋㅋㅋ



역시 오류가 날때가 있다~



또 열심히 구글링



stackoverflow.com/questions/61200676/tensorflow2-1-invalidargumenterror-assertion-failed-0-opassert-name-eage



tensorflow2.1 InvalidArgumentError: assertion failed: [0] [Op:Assert] name: EagerVariableNameReuse

I trained my custom model and used tensorflow 2.1. When I run the code I'm getting the following error: InvalidArgumentError: assertion failed: [0] [Op:Assert] name: EagerVariableNameReuse He...

stackoverflow.com



tensorflow-gpu좀 손보란다~



나는 tensorflow-gpu 2.3이여서 2.2로 downgrade하고 다시 2.3으로 upgrade했더니 오류 안생기고 잘 돌아간다.



- pip install tensroflow==2.2.0

- pip install tensorflow-gpu==2.2.0
